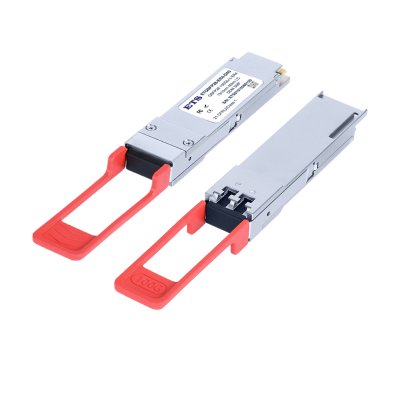

ETQSFP28-ER4-D40: 100G Base-LR4 QSFP28 Duplex 40km 1310nm Optical Transceiver Module LC DDM

Features

- 4 lanes MUX/DEMUX design

- Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF with FEC (30km without FEC)

- Support 100GBASE-ER4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

- Aggregate bandwidth of>100Gbps

- Duplex LC connectors

- Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module

- electrical standard ITU-T G.959.1-2012-02 standard |

- Single +3.3V power supply operating

- Built-in digital diagnostic functions

- Temperature range 0'C to 709C

- RoHS Compliant Part

- Support FEC(Forward Error Correction)

Applications

- Local Area Network (LAN)

- Wide Area Network (WAN)

- Ethernet switches and router applications
