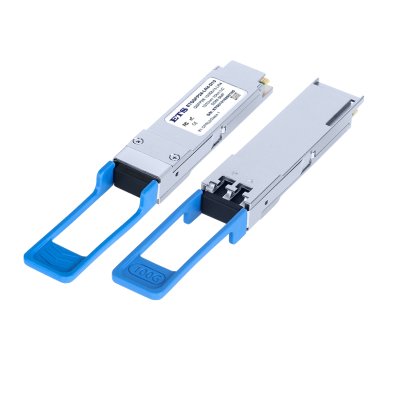

ETQSFP28-LR4-D10: 100G Base-LR4 QSFP28 Duplex 10km 1310nm Optical Transceiver Module LC DDM

Features

- 4 lanes MUX/DEMUX design

- Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF

- Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

- Aggregate bandwidth of > 100Gbps

- Duplex LC connectors

- Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module

- electrical standard ITU-T G.959.1-2012-02 standard

- Single +3.3V power supply operating

- Built-in digital diagnostic functions

- Temperature range O'C to 70*C

- RoHS Compliant Part

- Support FEC(Forward Error Correction)

Applications

- Local Area Network (LAN)

- Wide Area Network (WAN)

- Ethernet switches and router applications
