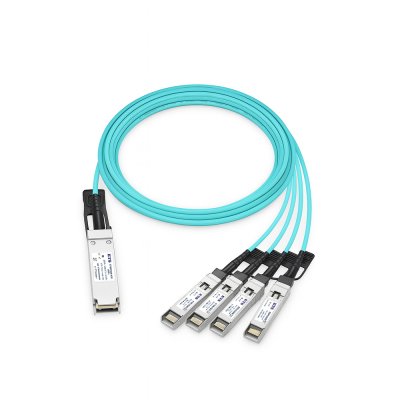

ETQSFP20S-AOC-4SFP+: 40G QSFP+ To 4 X 10G SFP+ AOC Cable Length 20M.

Features

- Compliant to the 40GBASE-SR4 and XLPPI

- Specification per IEEE 802.3ba-2010 and supporting

- 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications

- Compliant to the industry standard SFF-8436

- Power Level 1: Max Power < 1.5 W

- Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps

  with 8b/10b compatible encoded data for 40G-IB-QDR application

- Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor

   Pluggable Module

- Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor IPF

- Maximum power dissipation 0.35W per end.

- 0 to 70 C degree case temperature operating range

- Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver

- Hot pluggable for ease of servicing and installation

- Two Wire Serial interface

- Utilizes optical fiber for high density and thin, lightweight cable management

Applications

- 40GbE and 10GbE break-out applications for Datacom switch and router connections

- 40G to 4×10G density applications for Datacom and Proprietary protocol applications

- Datacenter
